Vertical Flammability Chamber HXB-002-Manufacturer-HUST TONY

Flame Spread Vertical Flammability Tester

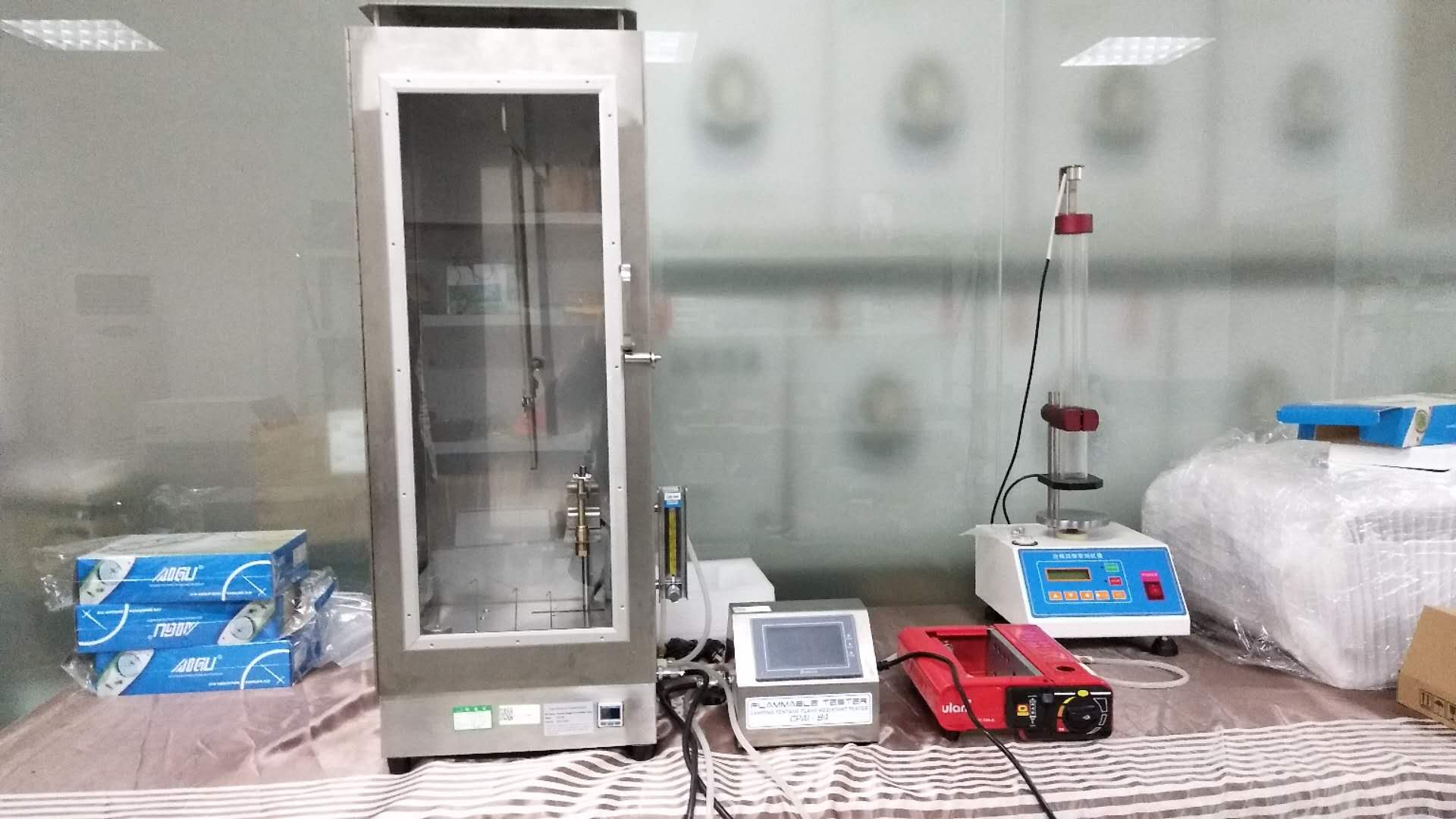

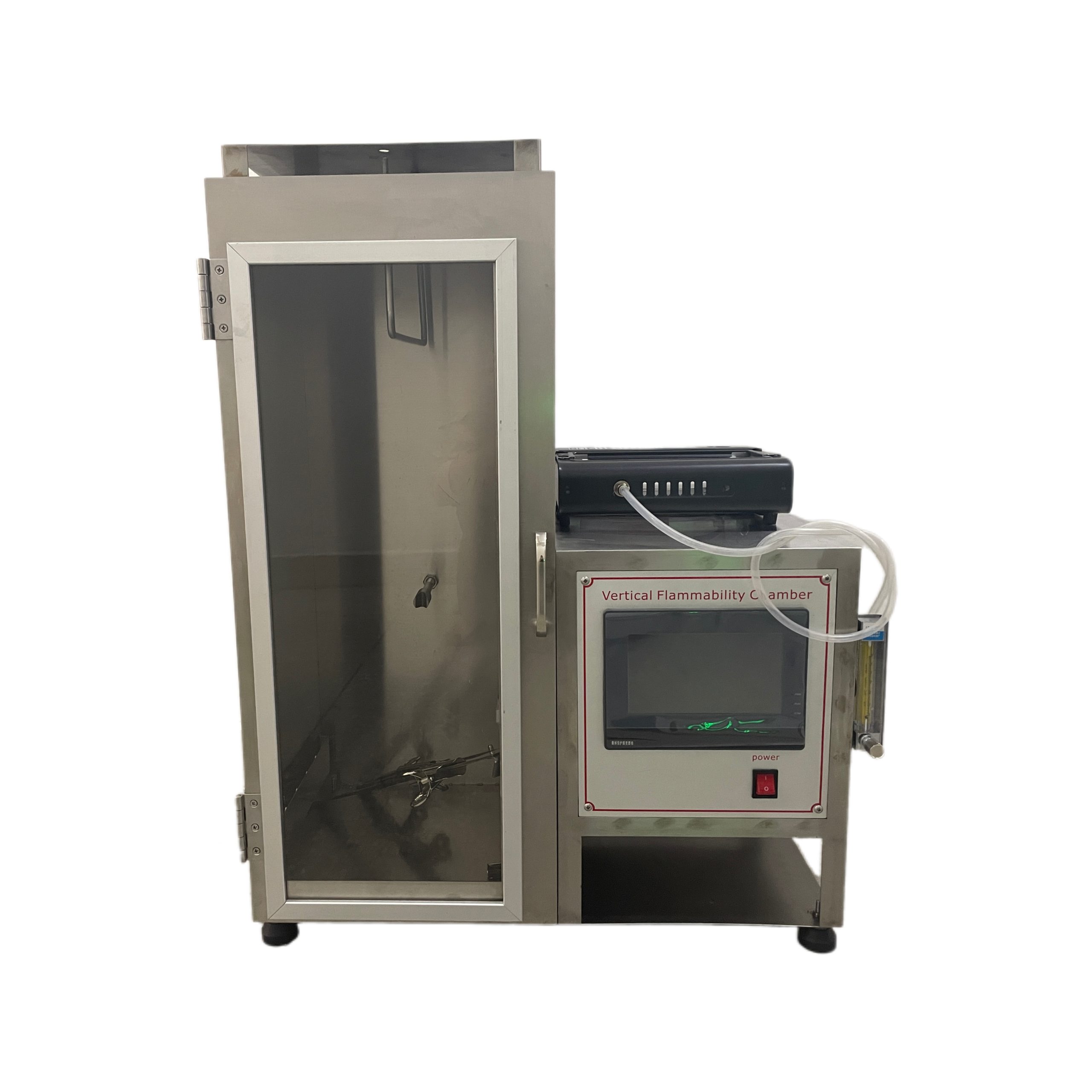

Vertical Flammability Chamber HXB -002

Vertical Flammability Chamber for measuring the vertical flame spread of children’s sleepwear, fabrics (fabric burn test), other textile materials or resilient filling materials used in upholstered furniture. Vertical flame test Chamber complies with ASTM D6413, CALIF TB117, 16CFR Parts1615/1616, etc.

Standard :

16 CFR 1615, 1616,

ASTM6413,

CALIF TB-117(TECHNICAL BULLETIN 117) SECTION A-Part I Resilient Cellular Materials

Technical Specifications

Model		HXB-002-1	HXB-002-2	HXB-002-3
After flame Time		0-999.9s resolution 0.01s
After glow Time		0-999.9s resolution 0.01s
Burning Time		12s(adjustable)
Nozzle	Inner diameter	11mm	10 -0.5 mm
	Angle	65 degree	90 degree
Dimension of specimen Holder	Out frame	42289 2mm	42289 2mm	Flexible Foam holder
	Inner frame	356 × 51 mm
Testing flame Height		40±2mm	38mm
Distance between nozzle top and specimen		17mm	19mm
Tearing Weights		54.4g, 113.4g, 226.8g, 340.2g, 453.6g	100g, 200g, 300g, 475g	no
Power supply		AC 220V 50/60HZ
Machine Dimensions		330340960mm (LWH)
Net Weight		45kg
Standards		CFR1615 CFR1616 GB/T 5455	ASTM D6413	CALIF TB-117
Standard Accessories		Tearing weights	1Set
		Sample holder	1Pcs
		Flame measuring scale	1Pcs
		Power line	1Pcs
Optional Accessories		Φ 11mm Nozzle	Optional
		Φ 10mm Nozzle	Optional
		CFR1615,1616 holder and tear weights	Optional
		ASTM D6413 holder and tearing weights	Optional
		CALIF TB-117 holder	Optional
