Toys Flammability Tester TW-226-Chinese Manufacturer-HUST TONY

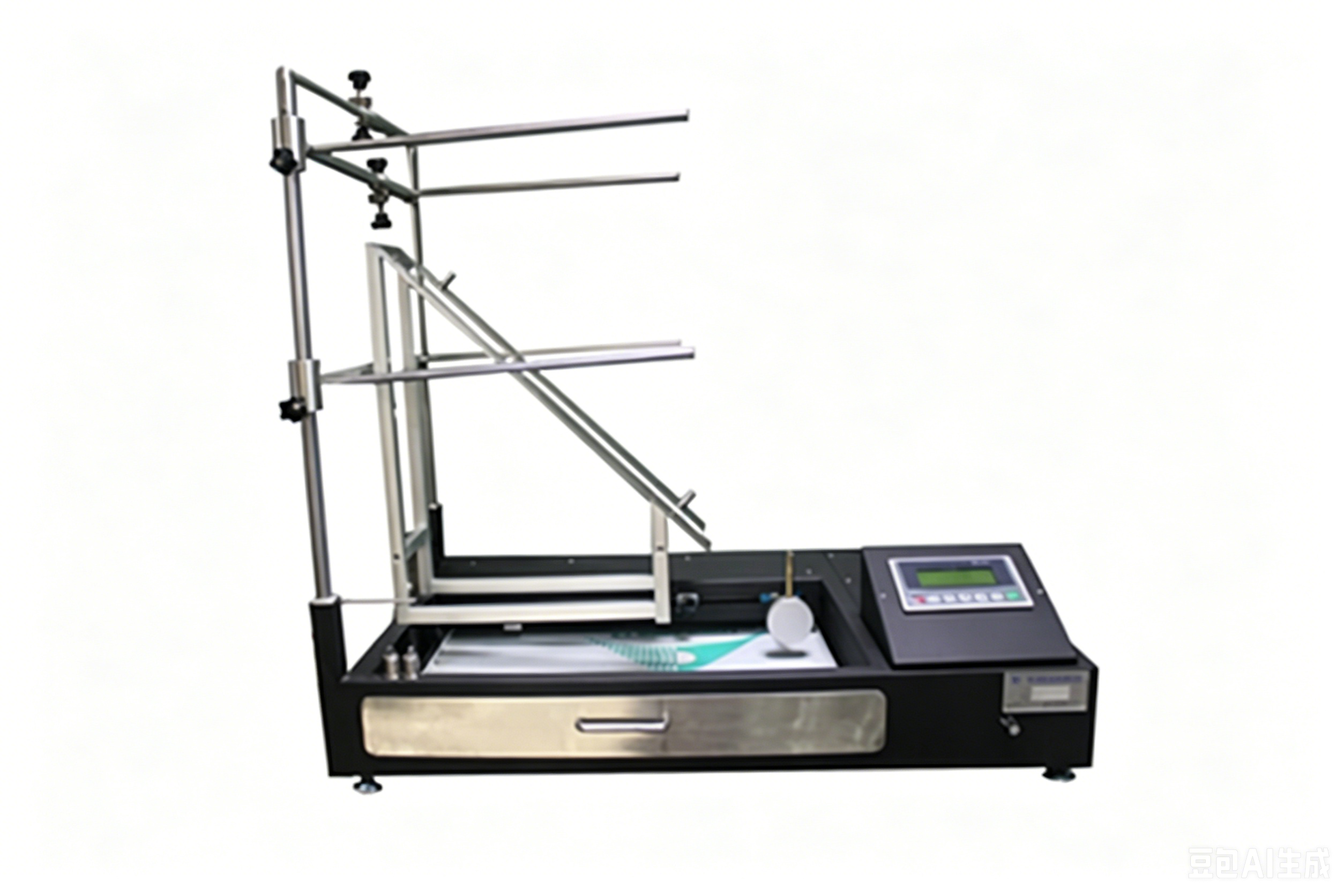

Toys Flammability Tester TW-226
Toys Flammability Tester is used for testing the flammbility of toys,children clothes,evalute the following toys flammability speed,time.
If you want to learn more about Toys Flammability Tester TW-226, Please click this link:Link 1
Scope of application:
-Clothing worn by children (make-up clothing), especially shawls, draped clothes and similar items.
-Toys accessible for children, such as a play tent and a games room
-Children can cuddle toys and fill software toys
-Toys that can be worn in the form of masks and wigs
Technical Specifications
Model | TW-226 | |
Ignition Time Set Range | 0~99.99S Precision:0.01S | |
Continue Burning Time Range | 0-999.9S | |
Ignition Mouth Size | Applies to IS0 6941 standard. | |
Burner Angle | 45o or 90o | |
Dimension of Specimen | 150mmX560mm | |
Power | AC200V 50Hz | |
Net Weight | 25KG | |
Gas | Butane gas | |
Machine Dimension (L×W×H) | 950×650×600 mm | |
Package Dimension (L×W×H) | 1000×700×650 mm | |
Standard Accessories | 1 Pcs | Toys Comprehensive Flammability Tester |
1 Pcs | Powercord | |
1 Pcs | Burning units | |
1 Bottle | Butane gas | |
1 Roll | Cotton thread | |
1 Set | Fixture | |
3 Pcs | Fix clamp | |
2 Pcs | Plug | |
2 Pcs | Flame caliper(20±2)mm,(40±3)mm | |
1 Pcs | Burning torch | |
3 Pcs | Weights | |
1 Pcs | Operating manual |
Features
1. The PLC control, the time is accurate, Chinese man-machine contact surface.
2. The different test method provides different sample jig.
3. Clamps are easy to operated.
4. The jig may adjust willfully, suits different sample.
Standards
