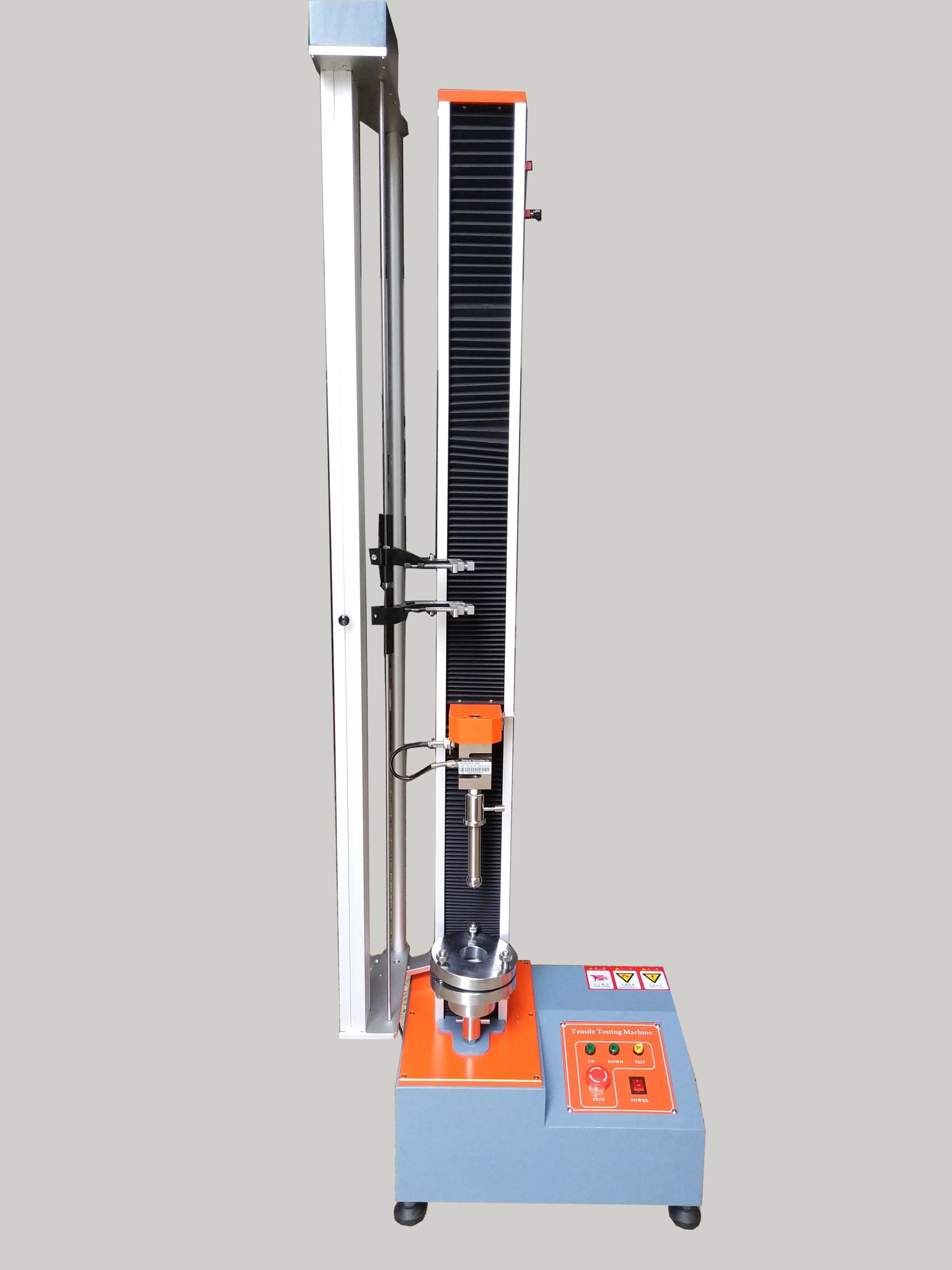

Tensile Strength Testing Equipment HTP-002-Single Arm-Computer Control-Supplier

Product Introduction

Tensile Strength Testing Equipment HTP-002 is suitable for all kinds of textiles, rubber, plastic, synthetic leather, adhesive tape, adhesive products, plastic film, composite materials, electronics, metal and other industries. It can do tension, compression, bending, shear, stripping and other tests to determine the quality of the products.(exclude computer)

Youtube video :Click here

Technical Specifications

Model	HTP-002
Capacity	200KG (500KG ,1000KG ,2000KG ,5000KG ,10000KG , for option)
Effective Load Range	0.4％～100％
Load Accuracy	±0.5％ of value
Display	Computer Test Software
Units	Kg,,Lb,N,
Data Sampling Frequency	200times/sec
Load Solution	1/±250000 of max load
Load Sensor	Pull and press sensor(max load)
Effective Test Width	150mm
Max Stroke	500mm (650mm /800mm/1000mm for option)It can also be customized according to customer needs
Test Speed	30～500mm/min
Displacement Accuracy	±0.5％
Returning Function	Manual or automatic two option, after test the up fixture will return to the initial position
Safety Device	Electronic process for limit procession
Overload Protection	If 10％ over than max load,machine will automatic stop for protection
Result Print	Outside printer that connect to computer
Power	220V±10% 0.2KW/0.4KW
Machine Size	420×350×1520mm
Package size	5045160cm
Machine Weight	Approx 50 Kg
Gross Weight	70 Kg
Standard Accessories	1 Set (wide is custom make )	Tensile strength fixtures
	1 Set	Computer test software
	1 Pcs	English manual book
