AATCC TM88 Shrinkage Laundering Machine Introtech KMS-M6
Shrinkage Laundering Machine Introtech KMS-M6
Shrinkage Washing machines are designed to determine the dimensional changes of fabrics or garments by simulating the usual home laundry. The testing instruments provide standardized testing conditions to reduce mistakes and contrasts according to AATCC, ISO, M&S and other industry or enterprise standards.
Compliant with Standards : AATCC TM88B, TM88C, 124, 135, 143, 150, LP1

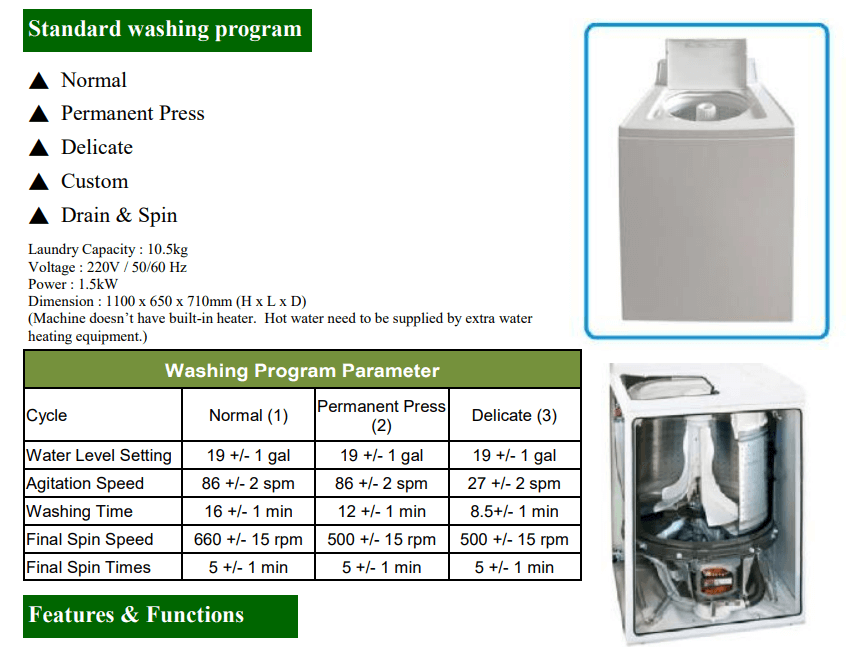

Technical specifications
washing program
▲Normal
▲Permanent Press
▲Delicate
▲Custom
▲Drain & Spin
Laundry Capacity : 10.5kg
Voltage : 220V / 50/60 Hz
Power : 1.5kW
Dimension : 1100 x 650 x 710mm (H x L x D)
(Machine doesn’t have built-in heater. Hot water need to be supplied by extra water
heating equipment.)
Washing Program Parameter
Cycle Normal (1)Permanent Press
(2)Delicate
(3)Water Level Setting
19 +/- 1 gal
19 +/- 1 gal
19 +/- 1 gal
Agitation Speed
86 +/- 2 spm
86 +/- 2 spm
27 +/- 2 spm
Washing Time 16 +/- 1 min 12 +/- 1 min 8.5+/- 1 min
Final Spin Speed
660 +/- 15 rpm
500 +/- 15 rpm
500 +/- 15 rpm
Final Spin Times
5 +/- 1 min 5 +/- 1 min 5 +/- 1 min

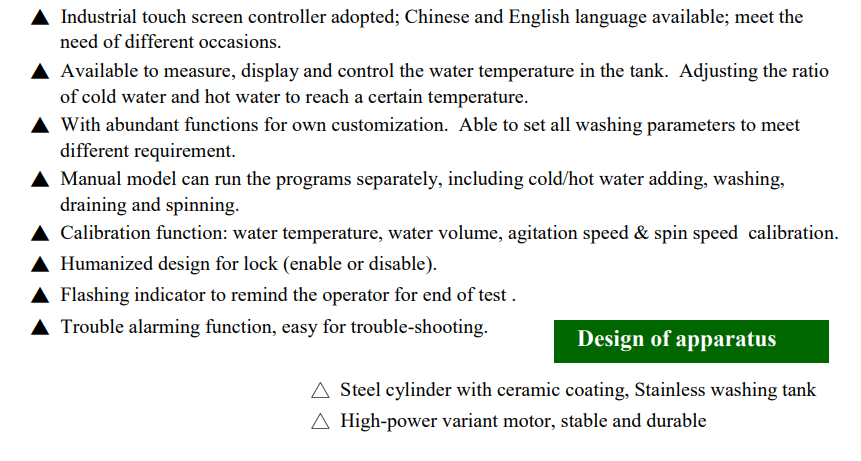

Feature:
Features & Functions
▲Industrial touch screen controller adopted; Chinese and English language available; meet the
need of different occasions.
▲Available to measure, display and control the water temperature in the tank. Adjusting the ratio
of cold water and hot water to reach a certain temperature.
▲With abundant functions for own customization. Able to set all washing parameters to meet
different requirement.
▲Manual model can run the programs separately, including cold/hot water adding, washing,
draining and spinning.
▲Calibration function: water temperature, water volume, agitation speed & spin speed calibration.
▲Humanized design for lock (enable or disable).
▲Flashing indicator to remind the operator for end of test .
▲Trouble alarming function, easy for trouble-shooting.
Design of apparatus
△Steel cylinder with ceramic coating, Stainless washing tank
△High-power variant motor, stable and durable
Standard
AATCC TM88B, TM88C, 124, 135, 143, 150, LP1
