Mobile Phone Soft Pressure Testing Machine DZ-217F-Made In China

Mobile Phone Soft Pressure Testing Machine

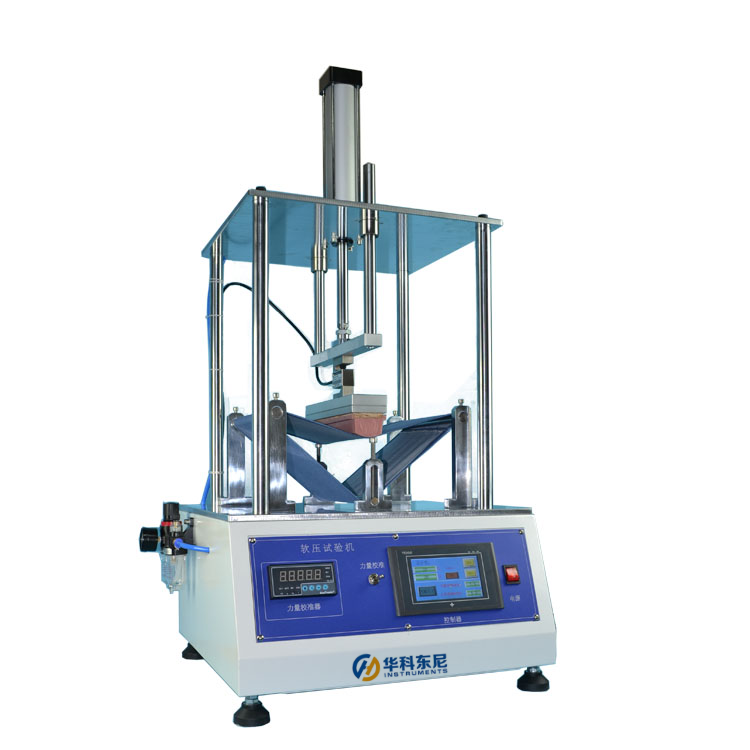

Mobile Phone Soft Pressure Testing Machine is suitable for mobile phones, tablet computers and other products to do soft pressure life test.

Mobile phone soft pressure life testing machine imitates people repeatedly do pressure life test, with a certain hardness of silica gel as the indenter, with a cylinder to drive, adjust a certain pressure of 25kg, measure the number of times to see the degree of damage.

Youtube video : Click here

Technical Specifications

Model	DZ-217F
Test Station	1 Pcs
Cylinder Driving Pressure	10-50kg adjustable
Test Extrusion Force	250N(25kgf)
Test The Trip	200mm
Test Speed	10~30 times /min adjustable
Test Times Setting	1 ~ 999,999 times (It can be preset, and the function of automatic stop and power-off memory can be reached for a set number of times)
Soft Pressure Indenter	120mm long silicone rubber soft indenter
Maximum Allowable Specimen Size	W200xD100xH40mm
Air Source	≤0.5Mpa or 5kgf/cm2
*Instrument Size( WLH)*	530 x 470 x 1180mm
Instrument Weight	About 80Kg
Working Voltage	AC 220V 50Hz 3A

Features

1. Mobile phone soft pressure testing machine, the box body is treated with electrostatic paint, and the whole machine is treated with pure aluminum oxidation, which is beautiful, generous and never rusty.

2. It adopts touch screen control, the test speed and frequency are adjustable, and the humanized design is adopted.

3. The product is extruded with high-elastic rubber and denim, and the reliability is evaluated after the product is subjected to a certain amount of pressure during use.

4. All components are imported parts, reliable quality and durable use.
