Martindale Abrasion Tester HTF-001B-Manufacturer-HUST TONY

Martindale Abrasion Fabric Testing Instruments,

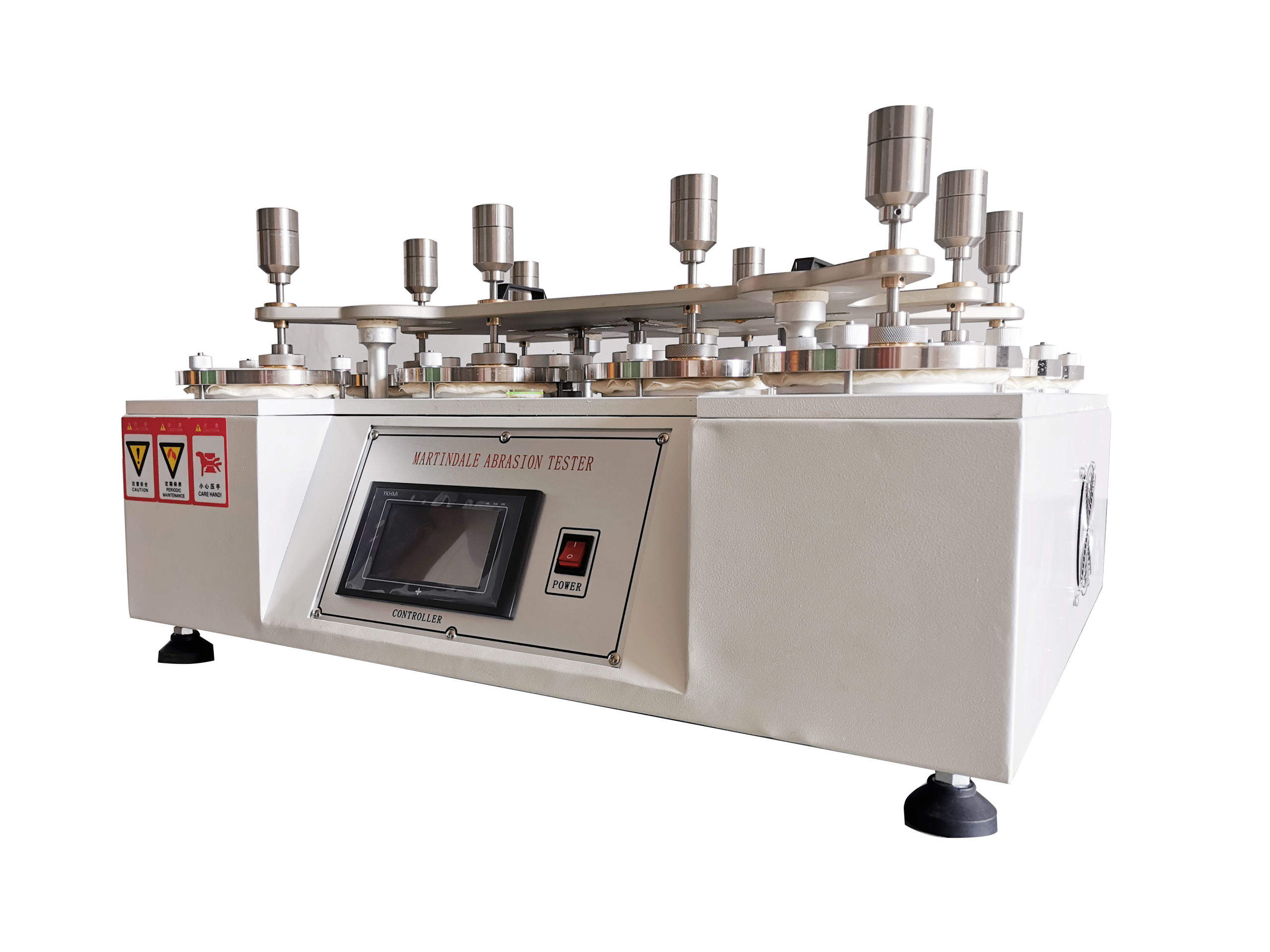

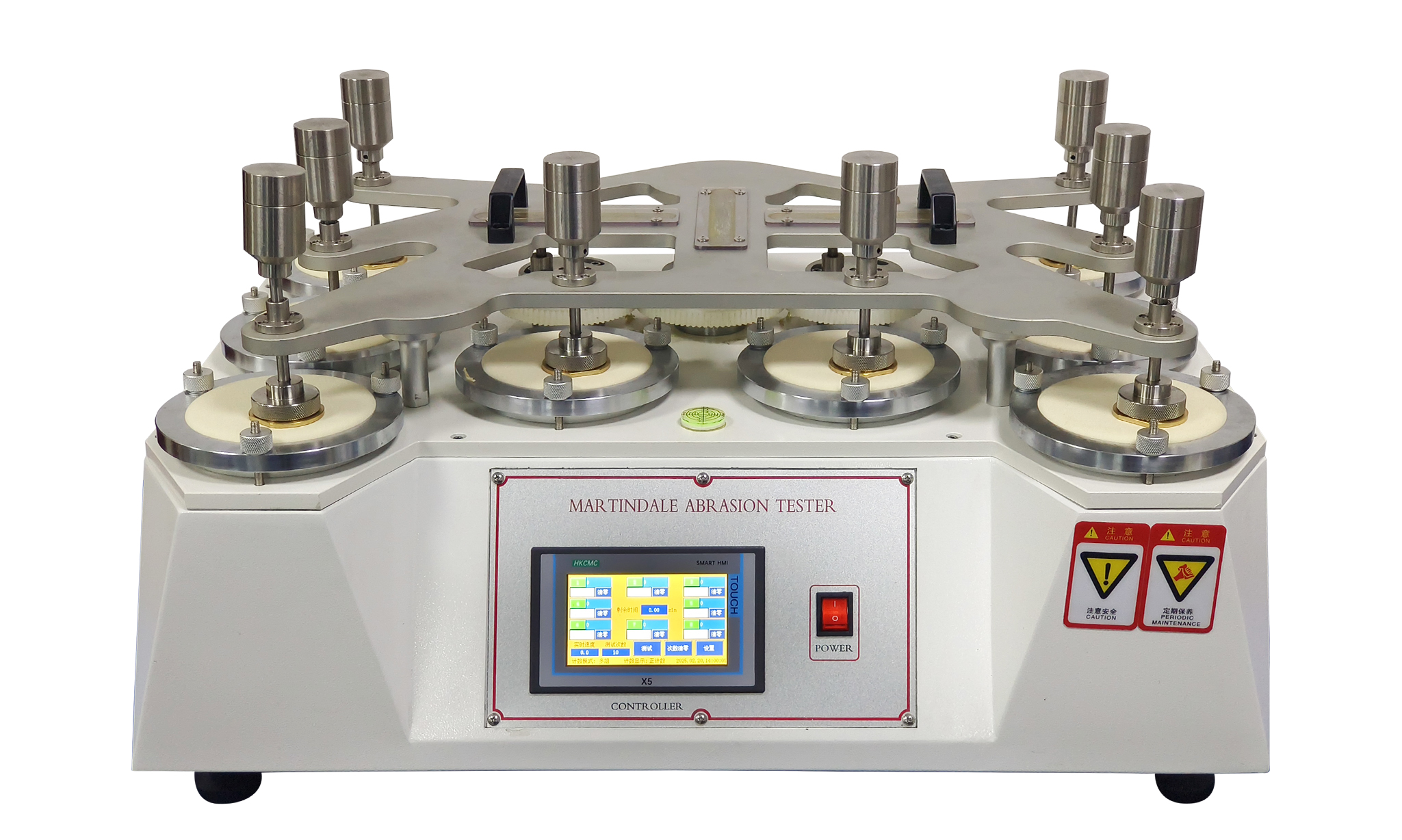

Martindale Abrasion And Pilling Tester --8 HEADS

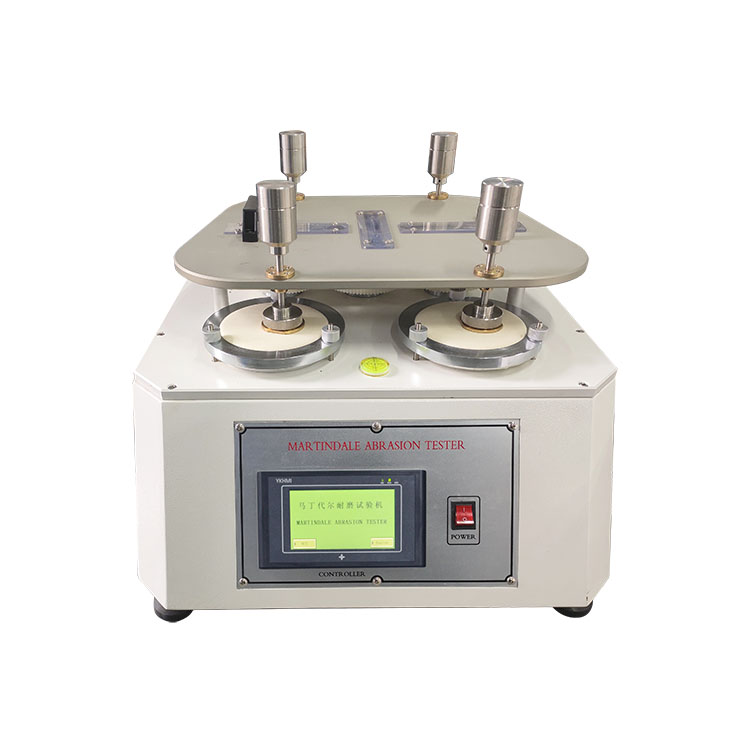

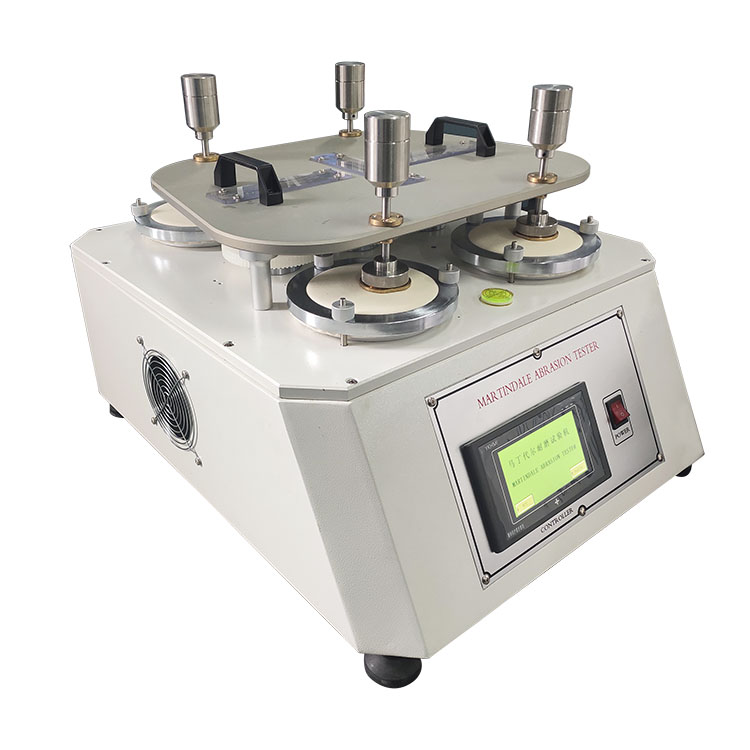

Martindale Abrasion Tester HTF-001B

Martindale Abrasion Tester HTF-001B is used for determine the abrasion and pilling resistance of all kinds of textile structures.

Samples are rubbed against known abrasives at low pressures and in continuously changing directions. The amount of abrasion or pilling is compared against standard parameters.

If you want to learn more about Martindale Abrasion Tester HTF-001B, Please click this link:Link 1

Youtube video :Click here

Technical Specifications

Model	HTF-001B

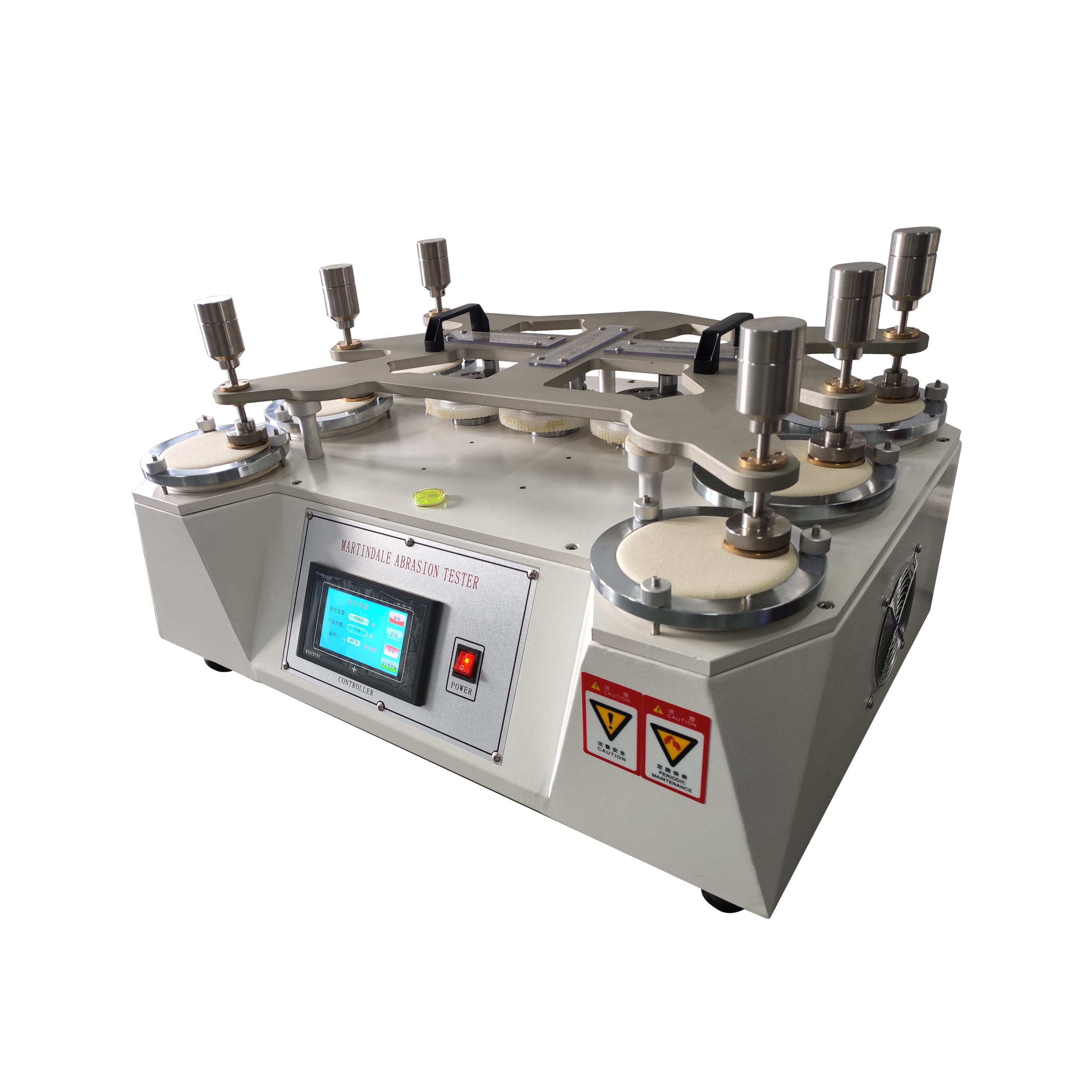

Testing Heads	4/6/8 /9 Optional
Accumulate Count	1~99999 times
Relative Velocity	50 r / min
Pressurized Material Weight Wear Resistance Test	Clamps component 200 ± 1g(1.96N)
	Cloth sample hammer 395 ± 2g
	Furniture decorations specimen hammer 594 ± 2g
Pilling Test	Gripper assembly 155 ± 1g, heavy punch 260 ± 1g
Effective Diameter of Abrading Table	φ121mm
Effective Friction Diameter	(A) Wear resistance test: φ28.8mm
Effective Friction Diameter	(B).Pilling performance test: φ 90 mm
Display	PLC Display, touch screen control
*Dimensions (L W* H)**	880600420mm
Instrument Weight	150kg
Power Supply	AC220V，50HZ
Standard Accessories	Ballot sheet 1pcs, Bowl shape specimen kit 1pcs O-rings( 6) Abrasion weights kit(6) Pilling weights kit(6) Power line 1pcs
Optional purchase consumables	Wool fabric, felt, sponge, EMPA, scale, SM50 scales
