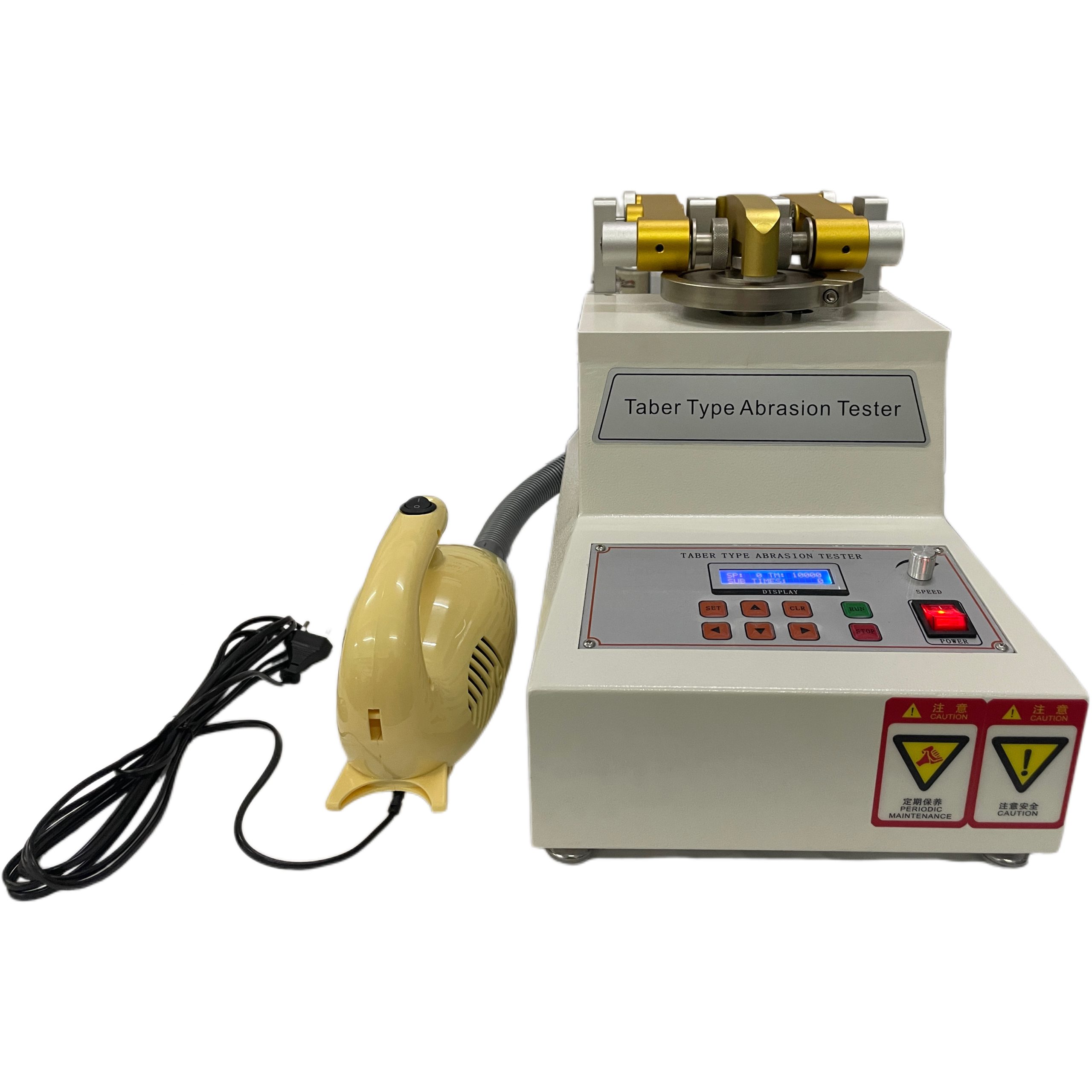

Taber Abrasion Tester HTC-005
Taber Abrasion Tester is used to determining the wear resistance of all kinds of structures including fabrics, leather and rubber, paper, metals, paints, plated surfaces, coated materials, glass, etc.
Technical Specifications
Model | HTC-005 | |
Test Position | 1 | |
Abrading Wheel’s Dimension | Outer dia.: 51.9 mm (Max.: 52 mm), Thickness: 12.7 mm | |
Center hole’s Diameter | 6.35 mm | |
Rotating Speed | 60 rpm / 72 rpm / adjustable | |
Distance Between the Inside Faces of Abrasive Wheels | 52.4 mm | |
Counter | 0~ 999,999 cycles | |
Machine Dimension | 530×320×310mm(L×W×H) | |
Net Weight | 60 kg | |
Power Supply | AC 220 V 50HZ / AC 110 V, 60 Hz | |
Standard Accessories |
| 1 set |
Abrading wheel CS-10 | 1 pair | |
S-11 Sandpaper | 1 pcs | |
Vacuum machine | 1 set | |
250 g Weight | 2 pcs | |
500 g Weight | 2 pcs | |
750 g Weight | 2 pcs | |
Power line | 1 pcs | |
Hex wrench | 1 pcs | |
Suggestion on selecting abrading Wheels | For coatings:CS-10, CS-17 | |
For Plastics:CS-17,H-18,H-22 | ||
For high-pressure decorative laminates:CS-32,CS-33 | ||
For textile fabrics:H-18, H-22 | ||
Features
1.Made of precision steel, and the housing is processed by remarkable craftsmanship for rust protection.
2.The platform’s revolution speed is adjustable: 60 rpm / 72 rpm or adiustable.
3.A vacuum cleaner is included to collect debris falled off from the specimen throughout the test.
4.All accessories and consumables are gainable from HUST TONY anytime.
5.Oridinal abrasive wheels and refacing sandpaper are included in the quote based on the different test standards
and test objects.
Standards
ASTM D3884 Abrasion resistance of textile fabrics(Rotary platform, double-head method)
ASTM D1175 Method of abrasion resistance of textile fabrics
ASTM D1044 Test method for resistance of transparent plastics to surface abrasion
ASTM D4060 Abrasion resistance of organic coatings by the Taber
TAPPI T476 Abrasion loss of paper and paperboard(Taber type method)
ISO 9352 Plastics determination of resistance to wear by abrasive wheels
ISO 5470-1 Rubber or plastic coated fabrics determination of abrasion resistance-part1 taber abrader
JIS K7204 Plastics-determination of resistance to wear by abrasive wheels
JIS A1453 Abrasion test method of building materials and building components (sand paper method)
JIS K6902 Testing method for laminated thermosetting high-pressure decoration
JIS L1096 Testing methods for woven and knitted fabrics
DIN 52347 Testing of alass and plastics, abrasion test, method using abrasion wheels and measurement of
scattered light
DIN 53109 Testing of paper and board-determination of abrasion by the abrasion wheel method
DIN 53754 Testing of plastics, determination of abrasion, abrasive disk method
DIN 53799 Decorative laminated sheets on basis of aminoplastic resins test method
ISO 17076-1 Leather determination of abrasion resistance part1-taber method
